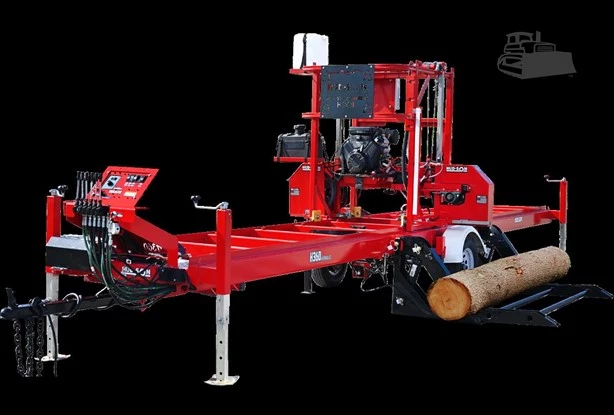

2025 HUD-SON H360

Hud-Son H360 Hydraulic Portable Sawmill comes standard with a 40hp engine, adjustable power feed, power throttle, power height adjustment, a hydraulic log loader, hydraulic log turner and heavy-duty 24-foot trailer. Built for the production minded sawyer, this sawmill is available with multiple engine options and optional hydraulic power dog and hydraulic backstops. This unit has a 36” diameter and 18-foot length capability. Easily set up in 10 minutes the mill will do the hard work for you. The sawyer runs the mill from a stationary position in the front of the mill that provides great vision of all the functions of the mill. All the essential bells and whistles without the high price!

Includes these options:
HYD-DOG: Hydraulic Log Clamp and Cant Roller
HYD-STOP: Hydraulic Backstops
HUD-SON BLADESET: Blade Height Setworks

CUTTING
Max Log Capacity - 36″ Diameter
Distance Between Guide - 31″
Max Thickness of Cut - 11″
Standard Track Length - 24′ 3 X 6″ Box Beam
Log Dogs - 3 Cam Style Dogs & Square Posts
Max Log Length (with standard trailer) - 18′
Blade - 167 X 1.25 X .042″
Blade Lubrication - 5 Gallon
Track Sweeps - Yes

POWER
Engine / Motor - 40hp Gas – Electric Start
Clutch Engagement - Centrifugal
Hydraulic Log Loader - Standard Included
Hydraulic Log Turner - Standard Bi-Directional

OPTIONS
Hyd Dog - Hydraulic Log Dog and Cant roller
Hyd Stops - Hydraulic Backstops

CONSTRUCTION
Frame - 4 Post with Lift Tubes
Bandwheels - 19″
Guide System - Dual Shoe Guides, 1 Adjustable
Lift System - Power Lift System w/ Control
Measuring - Dual Scale 1″and 4,5,6,8 Quarter
Main Bearings - 1.5″

WARRANTY
1-Year Warranty - Commercial Use
2-Year Warranty - Main Shafts and Bearings
