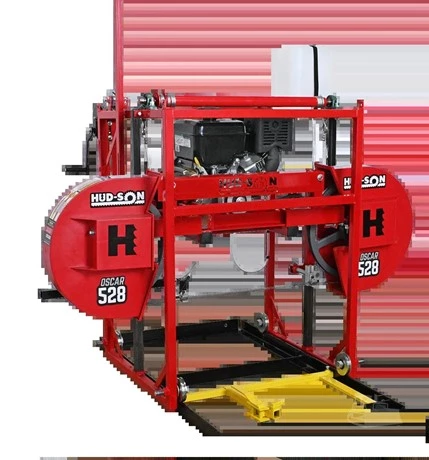

2025 HUD-SON OSCAR 528

The Oscar 528 is the first in the Oscar line of sawmills. Powered by a stout 14 horsepower electric start gas motor, this mill will muscle through the cut with ease. The unit uses the same large diameter clutch we run on our larger mills to give trouble free service and longevity. This sawmill has a manual winch to set your depth of cut and has the dual scale system to allow for maximum versatility in cutting dimensional lumber. The mill is also manual feed through the cut. All you have to do is gently push on the carriage. As in the entire Oscar sawmills this mill has a moveable guide tube that allows you to keep the band blade guides close to the wood for maximize accuracy.

CUTTING
Max Log Capacity - 28″ Diameter
Distance Between Guide - 24″
Max Thickness of Cut - 9″
Standard Track Length - 18′ / 3 – 6′ Steel Sections
Log Dogs - 2 Cam Style Dogs & Square Posts
Max Log Length (with standard track) - 15′
Blade - 132 X 1.25 X .035″
Blade Lubrication - 5 Gallon
Track Sweeps - Standard

POWER
Engine / Motor - 14hp Gas- Electric Start / 5hp 220V
Clutch Engagement - Centrifugal

CONSTRUCTION
Frame - 4 Post with Lift Tubes
Bandwheels - 16″
Guide System - Dual Shoe Guides, 1 Adjustable
Lift System - Lift Bale
Measuring - Dual Scale 1″and 4,5,6,8 Quarter
Main Bearings - 1.5″

WARRANTY
3-Year Limited Warranty - Residential Use
6-Year Warranty - Main Shafts and Bearings
